Description:

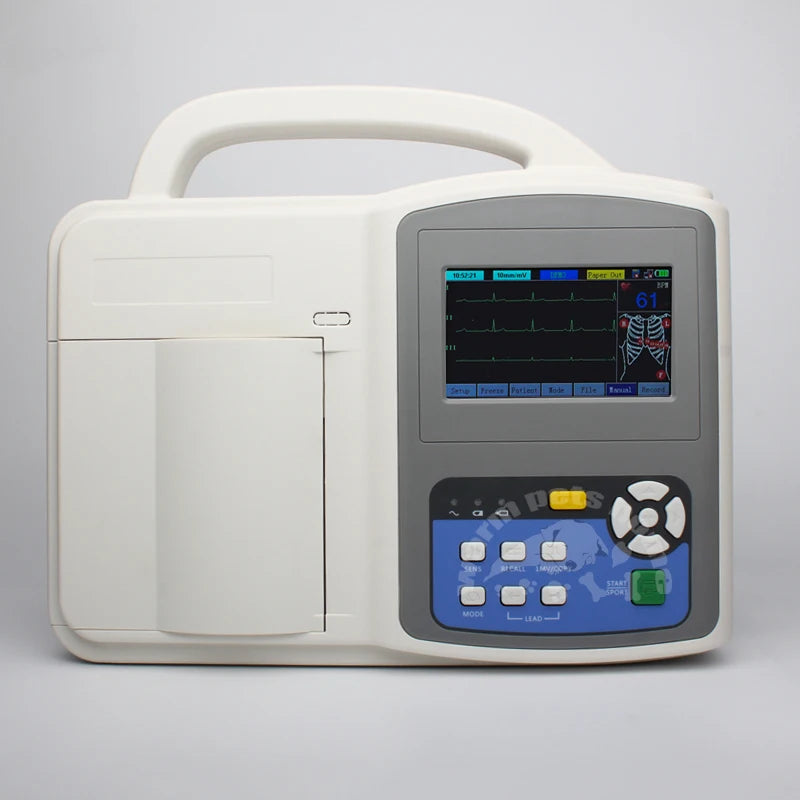

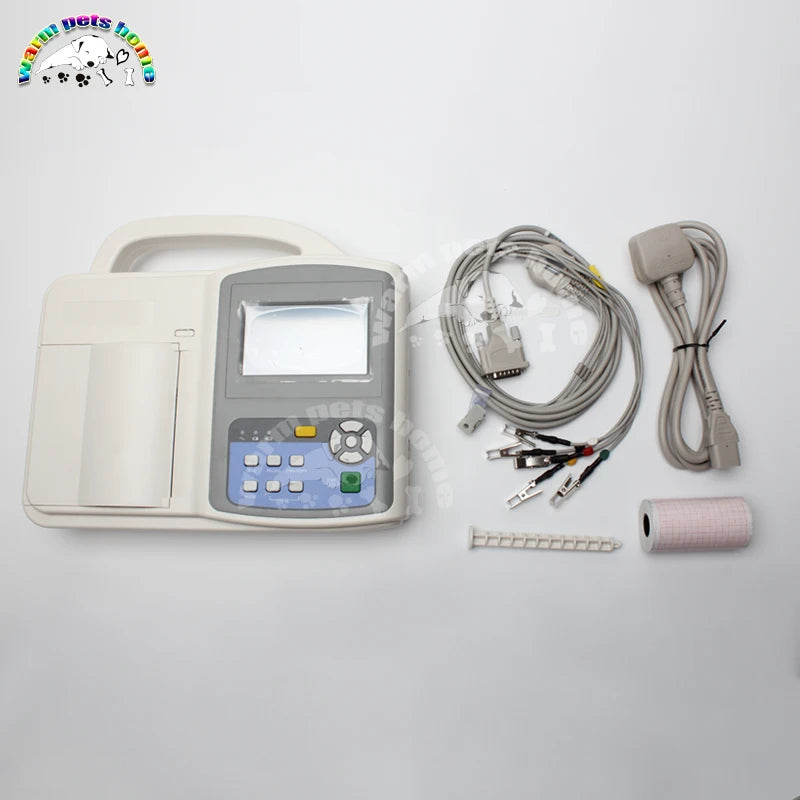

This machine is a portable and high quality 3-channel ECG, which offer not only normal thermal printing but also external printing

solution. It can used in hosipital. Clinic and emergencyies.

Features:

3 channel ECG machine with automatic interpretation

Manual/Auto working Modes

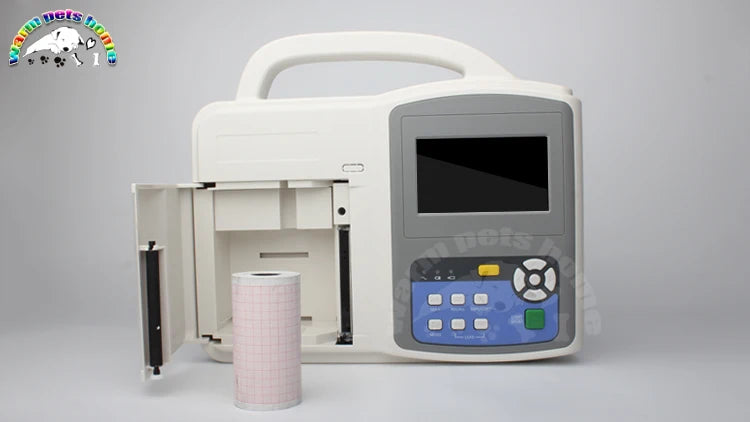

Simultaneous 12 leads acquisition and 3-ch recording with high resolution thermal printer.

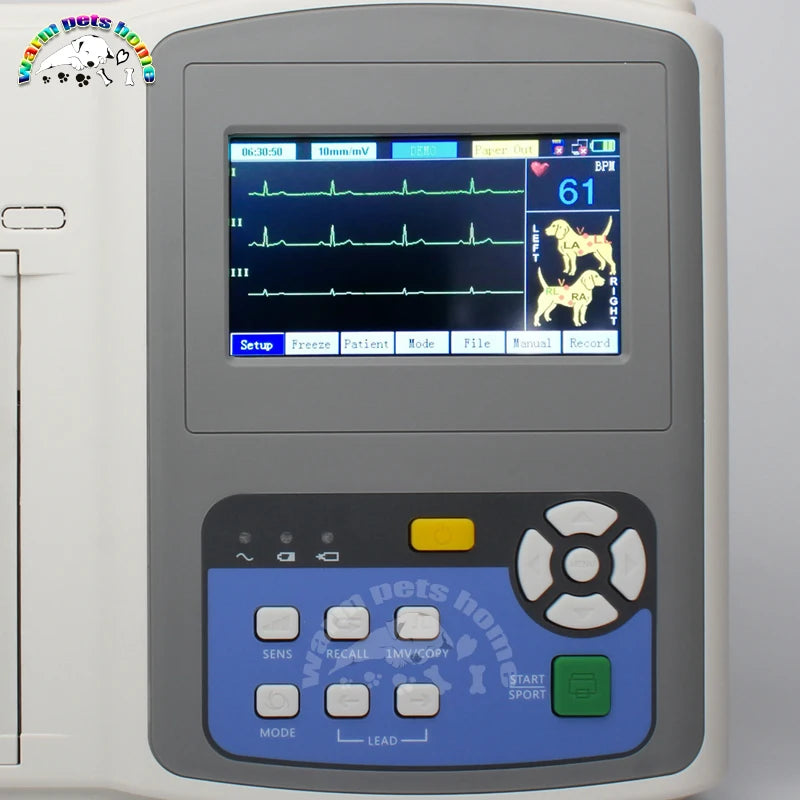

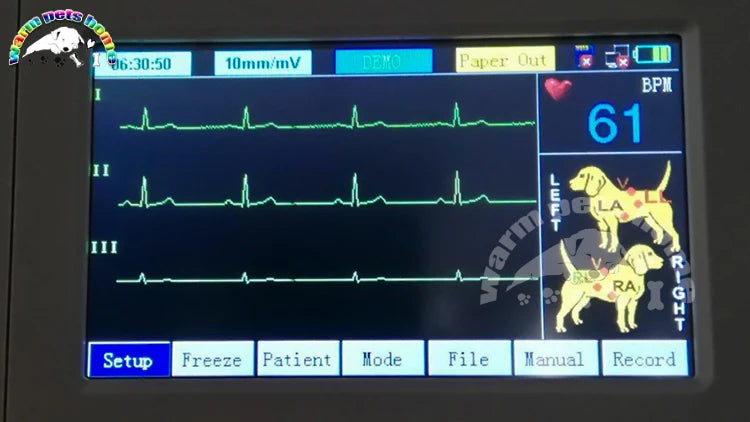

4.3 inch Color TFT LCD display ECG wave and friendly menu setting.

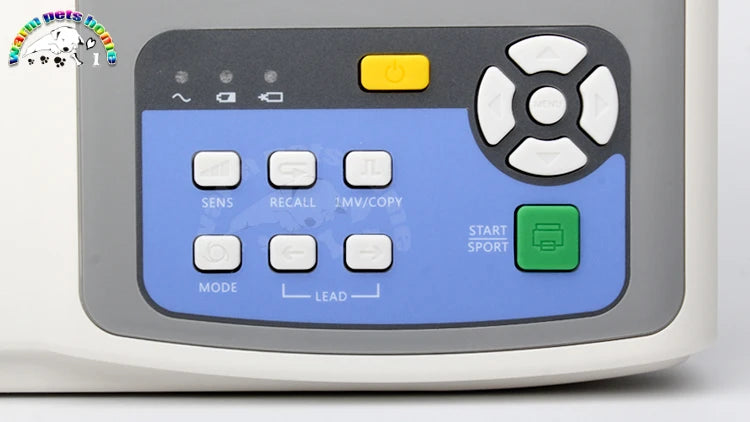

Support touch panel and keypad input ways

Support SD card storage.

120 seconds ECG wave freeze and replay function.

Lead-off detection and alert

Digital filtering, resisting baseline drift, AC and EMG interference

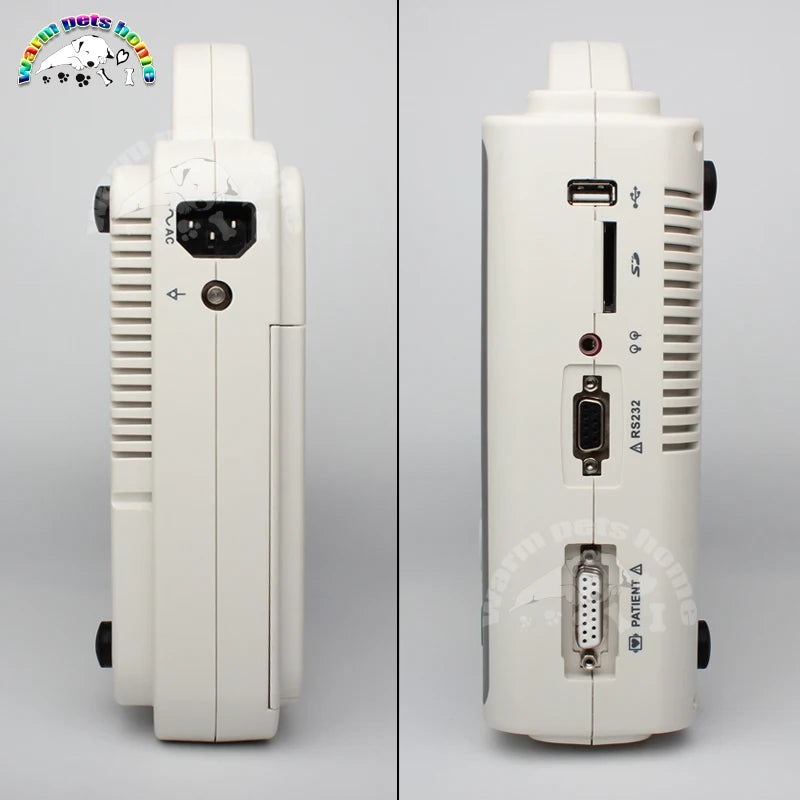

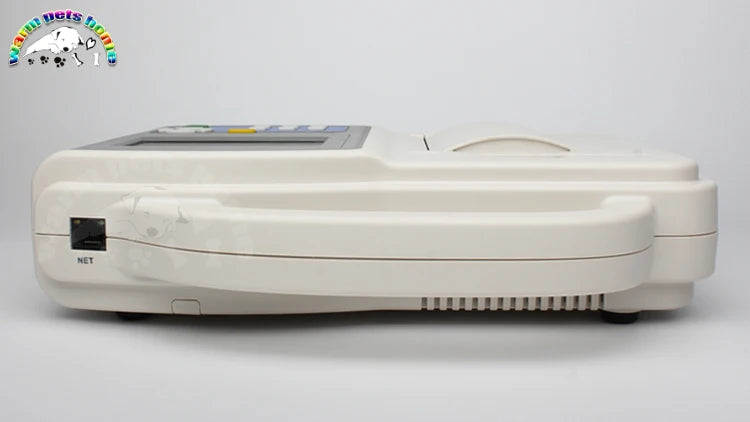

Built in USB/RS232 interface(ECGNET software optional)

Built in rechargeable Li-ion battery support less than 3 hours continuously work.

AC power supply at 90-240V@50/60Hz

Technical Specification:

Lead: standard 12 leads

Lead acquisition: 16bit/24bit 1000Hz(synchronously 12 leads)

Work modes: MANUAL,AUTO modes

Filter:

AC Flter : 50Hz / 60Hz

EMG Filter : 35Hz / 45Hz

Anti-Drift Filter : 0.15Hz (Adaptive)

CMMR: ≥100dB (with AC filter)

Input circuit: floating; protection circuit against defibrillator effect

Input Impedance: ≥50MΩ

Input circuit current: ≤0.05μA

Input dynamic range: ±5mVpp

Patient current leakage: <10μA

Calibrating voltage: 1mV±2%

Voltage tolerance:±600mV

Time constant: ≥3.2s

Frequency response: 0.05~150Hz(-3db)

Noise level: <15μVp-p

Sensitivity valve: ≤20μV

Sensitivity: 2.5, 5,10,20mm/mV

Inter-channel Interference: ≤0.5mm

Paper speed:5, 10, 12.5, 25, 50mm/s(±3%)

100 patient information storage.

Display:

4.3 inch TFT LCD with touch panel.
