SPECIFICATIONS

Brand Name: HSAP

Commodity Quality Certification: ce

Hign-concerned Chemical: None

Is Batteries Included: Yes

Item Type: Household Health Monitors Accessories

Origin: Mainland China

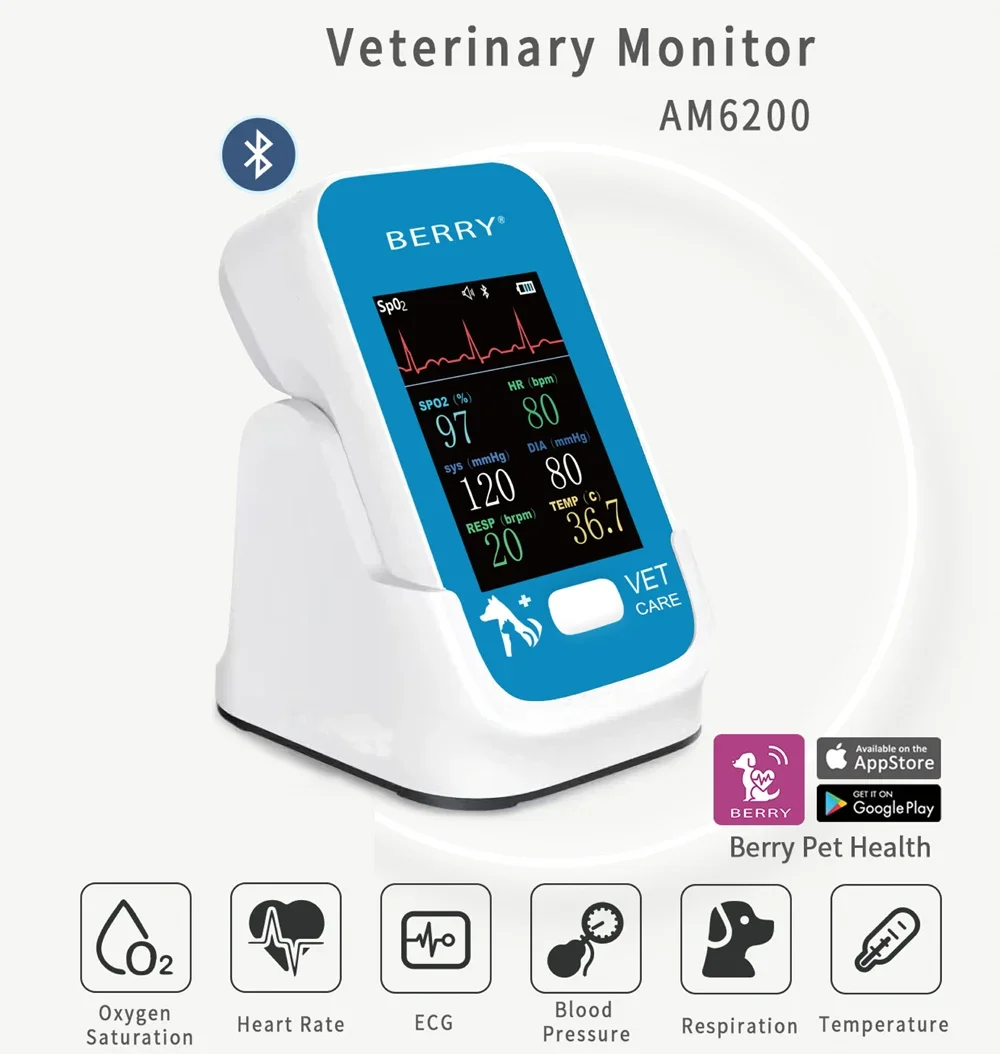

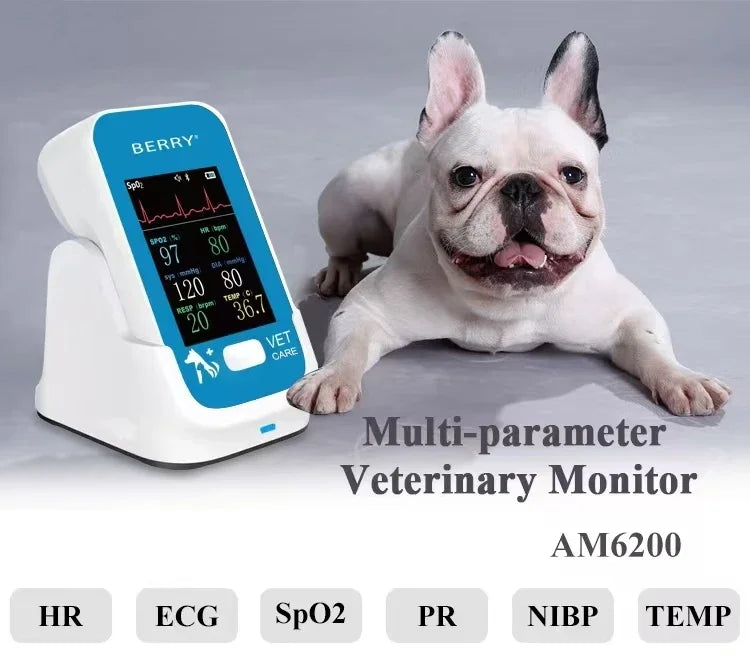

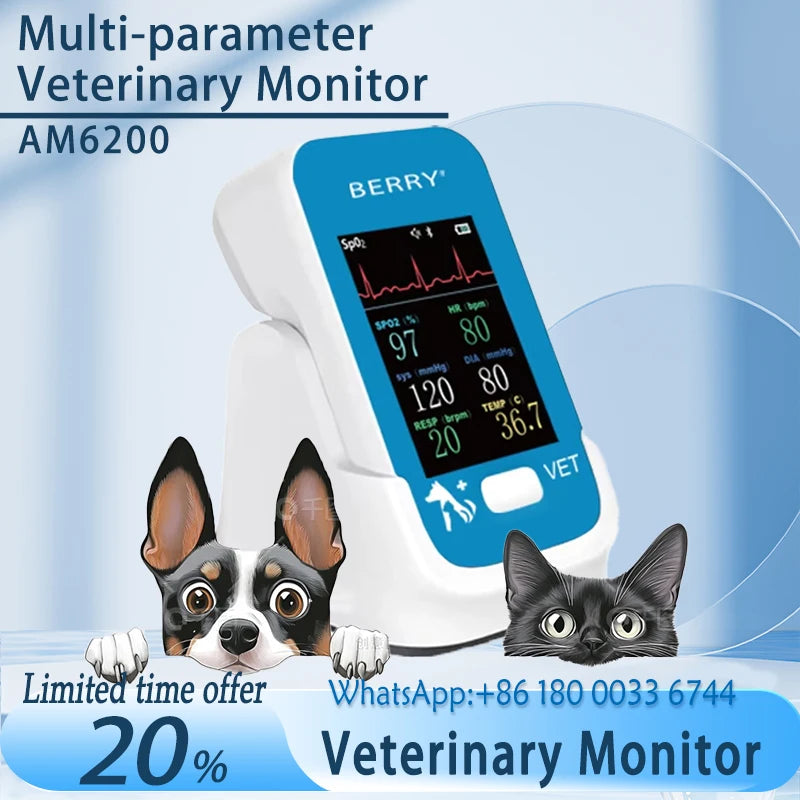

AM6200 This monitor is capable of monitoring parameters: ECG (Electrocardiograph), HR (heart rate), NIBP (non-invasive blood

pressure), SpO2, PR(pulse rate), TEMP(body temperature).

The One-Button-Design make the monitor to be a easy-to-use system,so you can perform the operations conveniently. Besides, this

monitor can be connected with the other smart terminals such as PC or Android phones.

This monitor integrates the functions of parameter measurement, waveform monitoring, etc. Its color TFT liquid crystal display is

able to show animal parameters and waveform clearly.

AM6200 pet monitor is applicable to the daily and surgical monitoring of various pets, and widely used in pet hospitals, pet

clinics, zoos, indoor and outdoor home care.

Function and Features：

1、6-Vital signs numerical results and waveform are shown on the TFT-LCD in real time.

 2、Communication with other intelligentterminals via Bluetooth.

 3、Automatically power off to save power.

 4、Portable, palm size

 5、Low power consumption.

 6、One touchoperation

7、APP for Android and iOS

8、Real time data transmission

9、Rechargeable battery and wireless charging

10、Can be used whilecharging

11、Lithium battery is builtin.

12、Multi-function for SpO2, HR, Temp, ECG, RR and NIBP

Specification：

Display HR, NIBP, SpO2, PR, TEMP, RESP

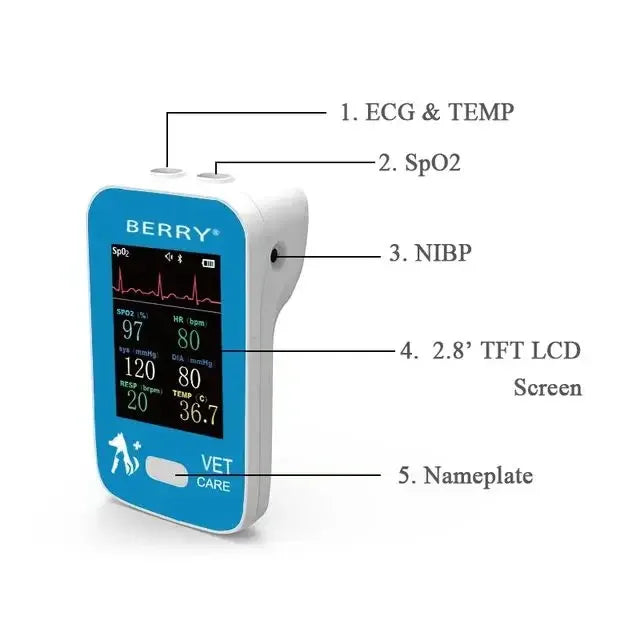

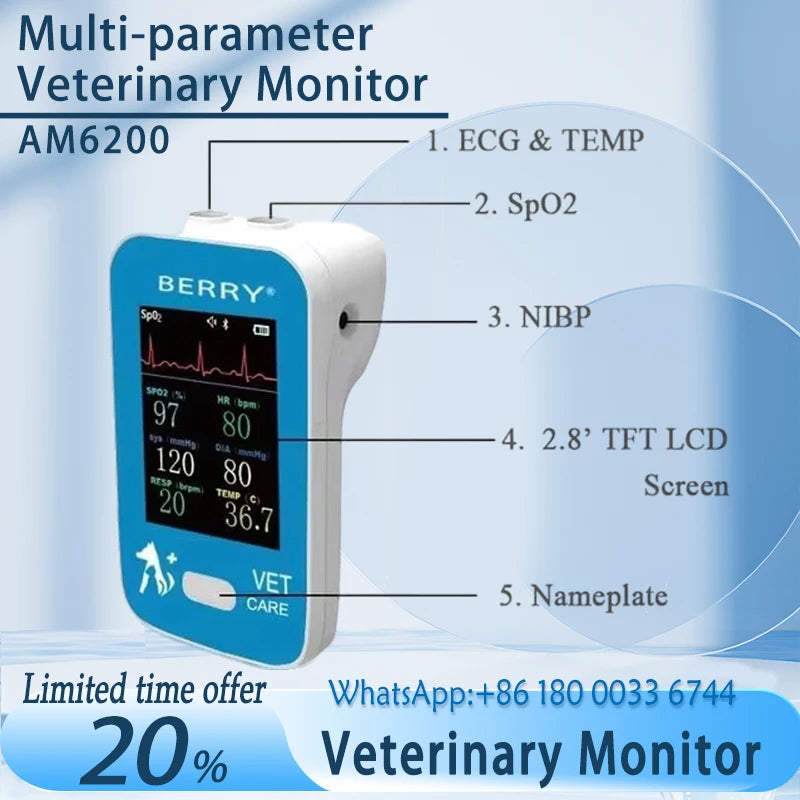

Screen: 2.8 inches colorized TFT screen

ECG
Waveform: Lead I
Band width 0.05Hz ~ 100Hz(3dB) diagnose mode
1 ~ 40Hz monitor mode
0.1 ~ 25Hz operation mode

Heart rate
Scope: 15 bpm ~ 300 bpm
Accuracy:±2bpm or 2%,whichever is greater.

NIBP Scope:

Systolic blood pressure: 4kPa ~ 34kPa(30mmHg ~ 255mmHg)

Diastolic pressure: 2kPa ~ 29.3kPa(15mmHg ~ 220mmHg)

Mean pressure: 2.7kPa ~ 31.3kPa （20mmHg ~ 235mmHg）

Detection accuracy: Static pressure: ±3mmHg

Temp

Type: Vascular/surface temperature

Scope: 25℃ ~ 45℃

Accuracy: ±0.2℃

SpO2

Measurement range:35~100%.

Accuracy: ±2% (80%~100%), ±3% (70%~79%),

±3% (35%~69%)

PR

Measurement range: 25~250bpm.

Accuracy: ±2bpm or 2%,

whichever is greater.

RESP

Measurement range: 5～100brpm.

Accuracy:±2brpm

Weight: 256±10g

(not including accessories).

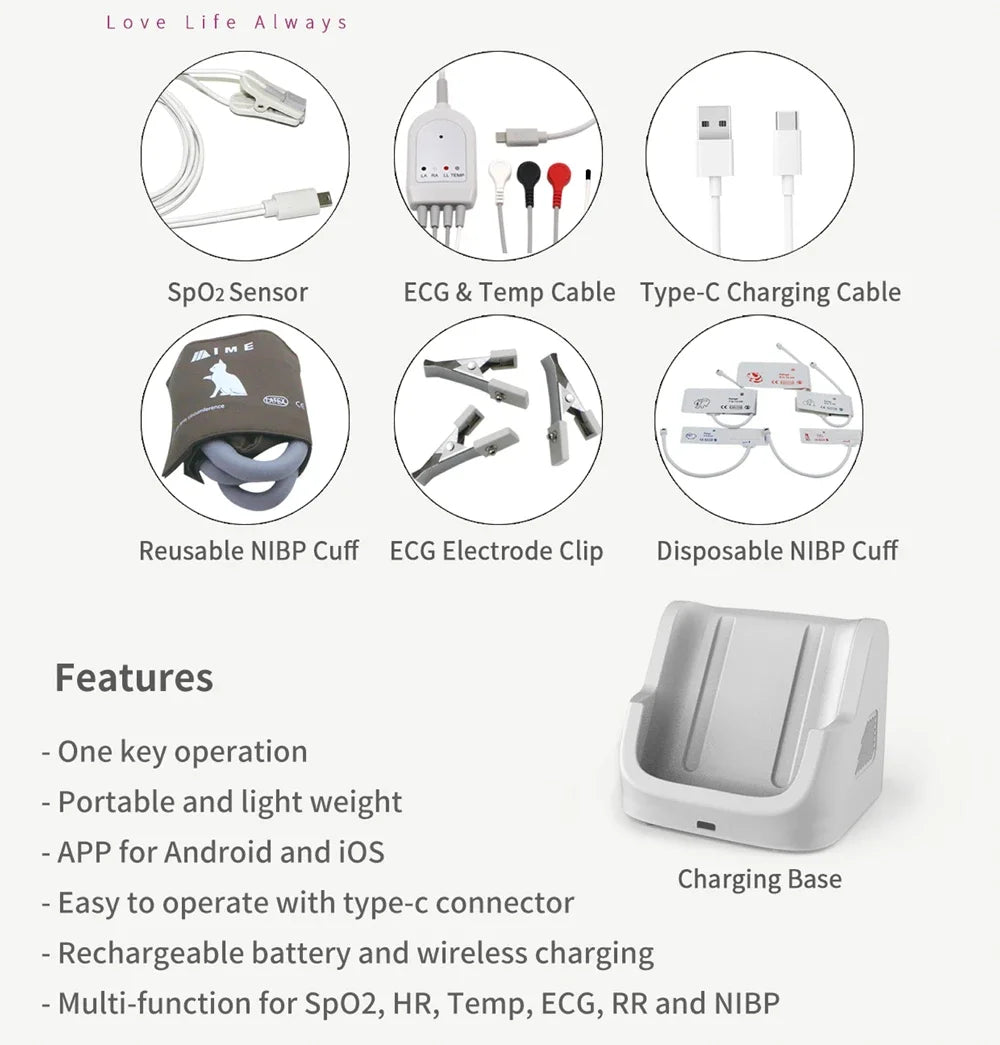

Standard configuration:

Battery and Charging

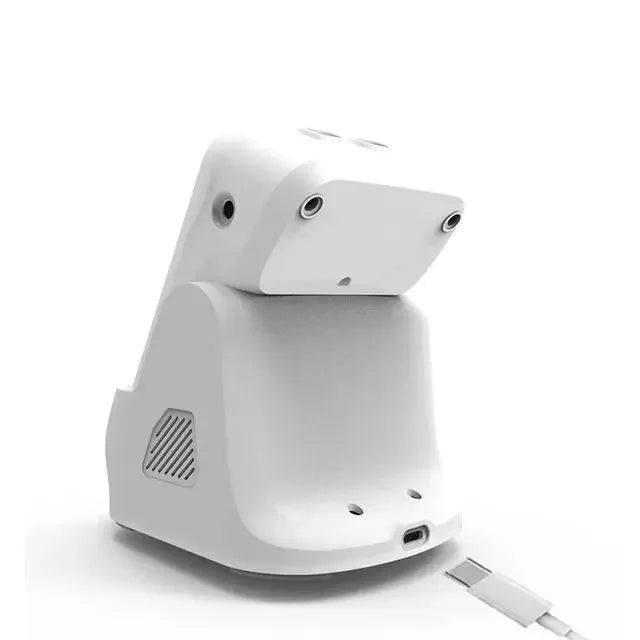

1、Charging Base

2、SpO2 Sensor

3、ECG & Temp Cable

4、Disposable NIBP Cuff

5、Reusable NIBP Cuff

6、ECG Electrode Clip

7、Type-C Charging Cable

Built-in Battery

3.7V, 1800mAh lithium battery.

Wired Charging

5V⎓1A

Wireless Charging

5W

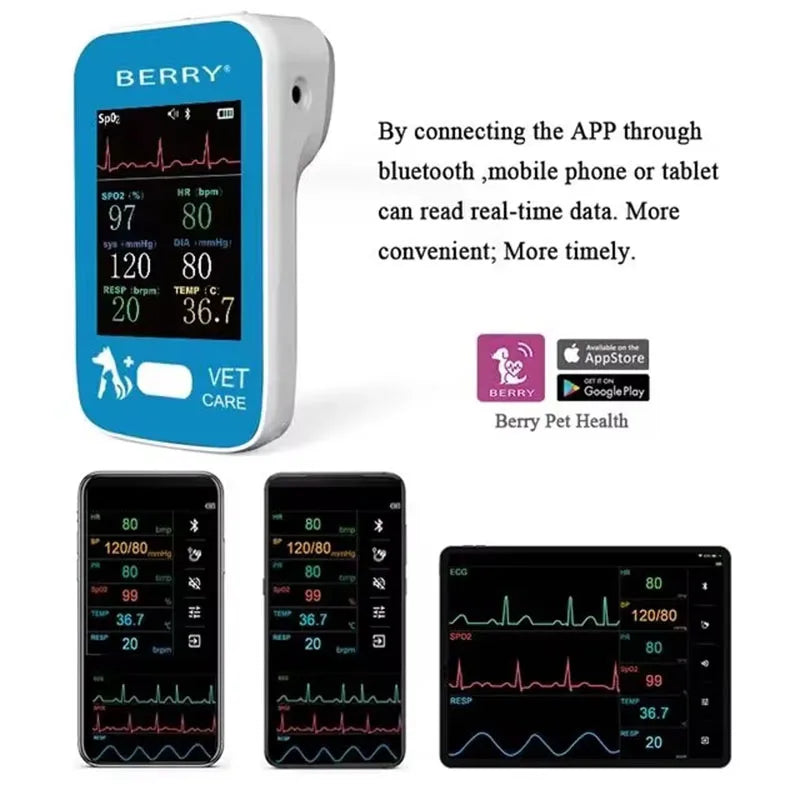

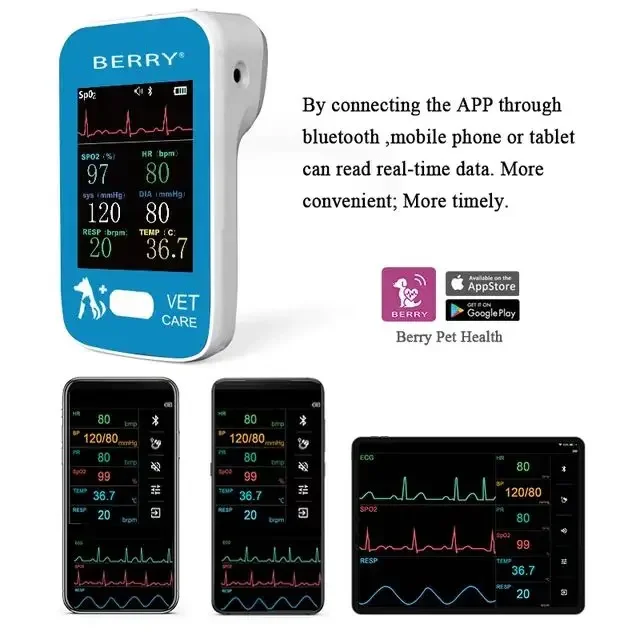

By connecting the APP through Bluetooth ,mobile phone or tablet can read real-time data. More convenient; More timely.

APP

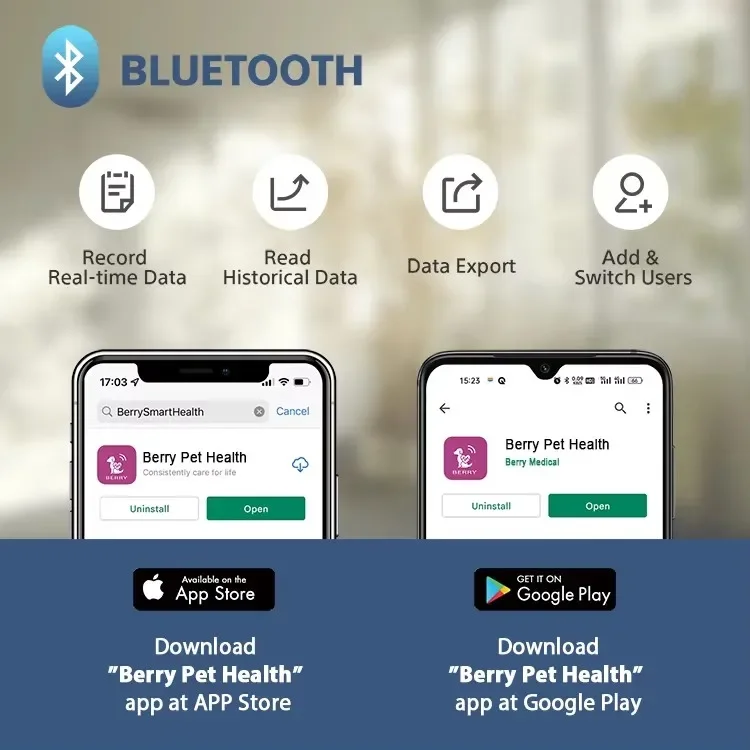

“Berry Pet Health”app at APP Store and Google Play

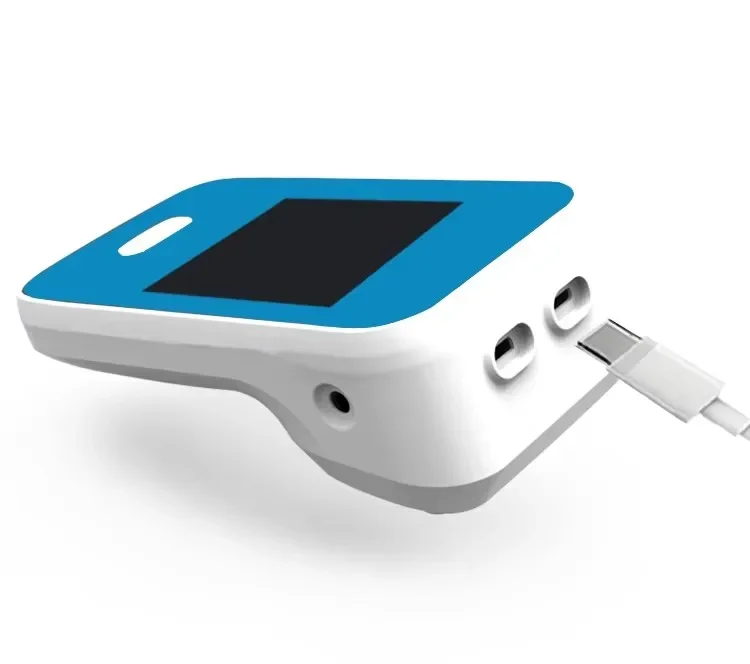

Can be used while charging, charge supports Type-c interface
